Power distribution unit

Product name

Power distribution unit

1

Plug type and number

8BitC13Socket

Product Specifications and Models

1H16C30-8E

2

Internal connection line

14AWG,16AWGElectronic wire, purple copper strip

Product code

3

Power supply input method

Power cord

Product quantity

4

Plug type of cable

German standard plug

RoHS

have

5

Cable specifications

3*2.5mm²*3mcable，

Customer product code

6

Cable installation method

Left end input

Customer product specifications and models

7

Cable line fixing

7P-2

8

Shell color

Black

Product special instructions

/

9

Size specifications（L*W*H）

484*44.5*44.5mm

10

fixed hole center distance

465mm

11

Aluminum alloy case length

432mm

12

Product installation method

Support installation

13

 Support installation direction

Horizontal suit

Factory accessories

M6 Screwnuteach 4pcs

14

 Control indication function

indicator light

15

Protection monitoring function

/

16

 Software version

/

Product identification

Product name

Power distribution unit

Customer specification model

1H16C30-8S

Rated voltage and current

200-240VAC   16A

Safety certification mark

/

Product LOGO

neutral

manufacturer

neutral

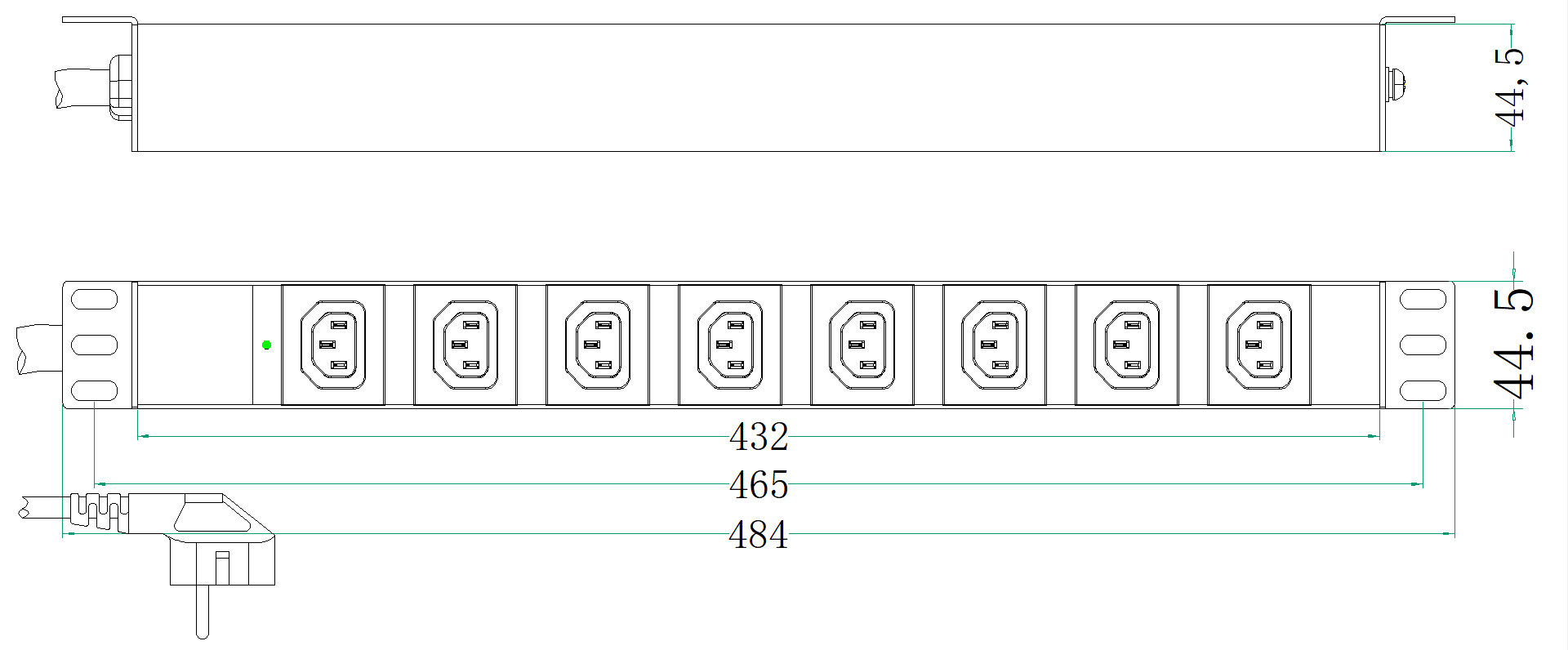

Product renderings :
